TP316L Annealed and Pickled Heat Exchanger Seamless Tube

Basic Info

Model No.: Heat Exchanger Tube

Type: Stainless Steel Pipes

Standard: ASTM, AISI, GB, JIS, DIN, EN

Grade: 300 Series

Certification: ISO, AISI

Shape: Round

Technique: Cold Rolled, Cold Rolled And Cold Drawn

Surface Treatment: Annealed And Pickling

Additional Info

Packaging: Export Standard Plywood case or weaving bags in bundles.

Productivity: 400 ton

Brand: CNMAX

Transportation: Ocean,Land,Air

Place of Origin: Zhejiang

Supply Ability: 400 ton

Certificate: ISO

HS Code: 7304419000

Port: Ningbo,Shanghai

Product Description

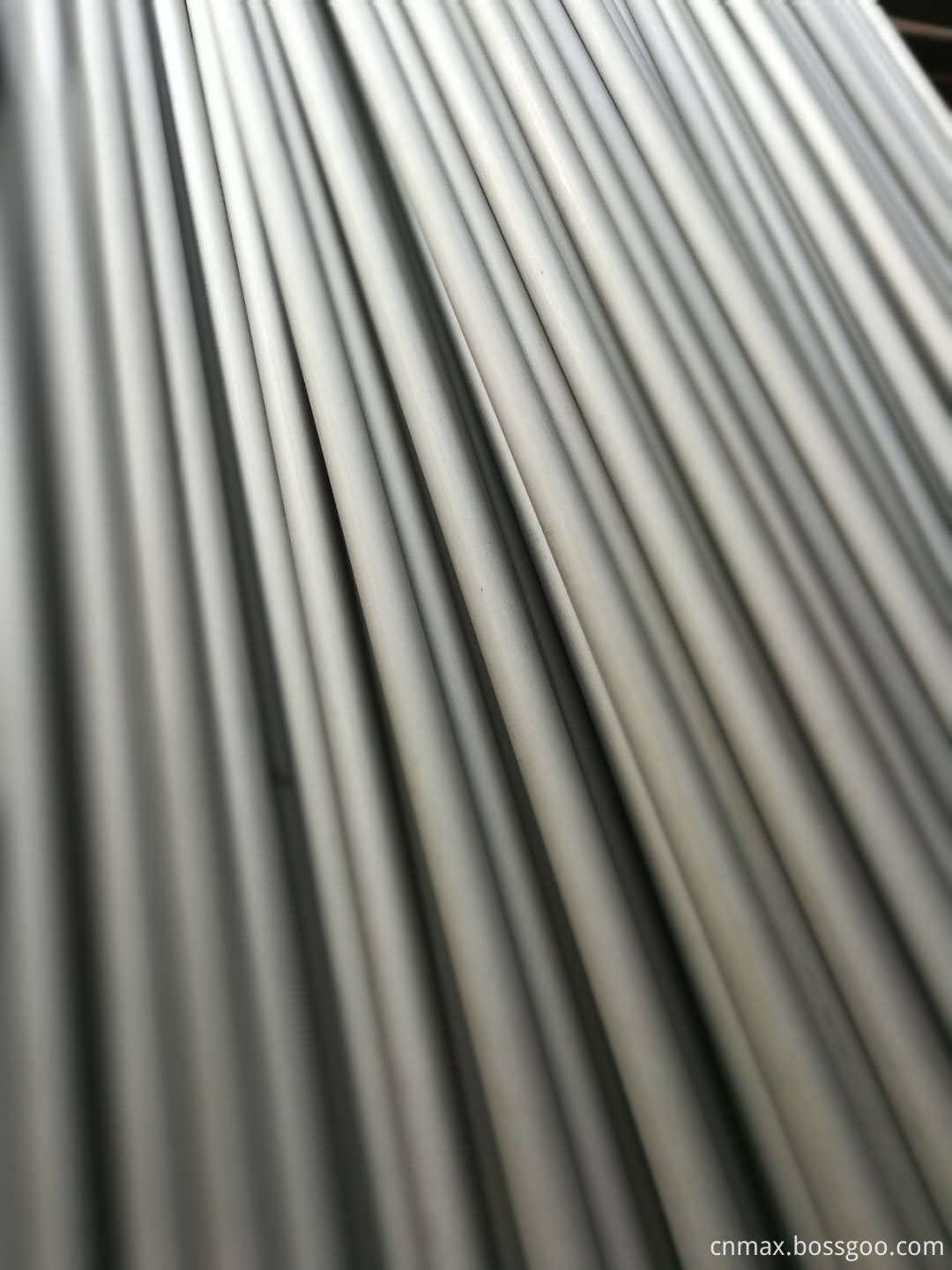

TP316L Annealed and Pickled Heat Exchanger Seamless Round Tube

Specification:

ASME SA213/A213: Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater and Stainless Steel Heat Exchanger Tubes.

ASTM A249 / A249M:Standard Specification for Welded Austenitic Steel Boiler, Superheater

Heat-Exchanger, and Condenser Tubes.

ASTM A789/A789M, ASME SA789/SA789M Seamless and Welded Ferritic/Austenitic Stainless Steel Tubing for General Service

Other Standard:DIN 17456 , DIN 17458, EN10216-5, GOST 9940-81, GOST 9941-81, JIS-G3463,...

Material Grade:

1. Process mothod: Cold Drawn/Cold rolled

2. Surface finished: Annealed and pickled

3. Materials: TP304/L/H, TP316/L/Ti, TP321/H, TP310S, TP317L, TP347/H etc.

4. Ends: Beveled or Plain

5. Standard: ASTM A213/ASME SA213,  ASTM A269/ASME SA269, ASTM A312, EN10216-5, JIS G3463, etc.

6. OD: 1/8"-20"  (3.175MM-44.5MM)

7. WT: 0.028"-0.15"(0.71MM-3.81MM)

8. Tolerance:  According to the specification or customer's request

9. Inspection: PMI Test, Eddy Current Test, Hydraulic Test, Non-Destructive Test

10. Package: Export Standard Plywood case  or weaving bags in bundles.
